Cooling Efficiency : Up to 19.8 SEER
Heating Efficiency : Up to 10.6 HPSF
Comfort Features : Better
Standard Feature
- Sizes: 09 / 12 / 18 / 24
- Available in 115V and 208/230V
- Refrigerant leakage detection
- Auto-restart function
- Condenser high-temperature protection
- Quiet outdoor operation, as low as 50.5 decibels1
- Aluminum Golden Hydrophilic pre-coated fins
- 10-year parts limited and 10-year compressor limited warranties to the original
- purchasing owner upon timely registration2
1 Quietest size within each model group during low fan-speed operation
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
Efficiency
- Up to 19.8 SEER
- Up to 11.2 EER
- Up to 10.6 HSPF
Performance
- Quiet outdoor operation, as low as 50.5 decibels1
Outdoor Operating Range
- Cooling operating range 0° ~ 122° F (-17° ~ 50° C)
- Heating operating range 0° ~ 86° F (-17° ~ 30° C)
Line Length
- Total piping length 82~164 ft. (25-50m)
Technology
- Inverter Compressor
Capacities
- 0.75 – 2.0 Ton
Requirements
- 115V and 208/230V
Aesthetics
- Heavy-gauge, galvanized steel construction
- Primed and coated with a 100% coverage, baked-enamel finish in white
1 Quietest size within each model group during low fan-speed operation

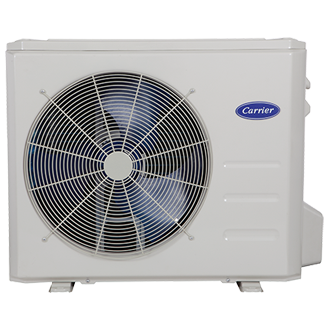

The 38MHRBQ heat pump lives up to our ComfortTM series name, quickly getting up to speed to provide responsive heating and cooling. The highest efficiency model in this series, it’s the ideal solution for affordable, space-saving comfort. Properly matched with a Carrier high wall indoor unit, the 38MHRBQ can make all the difference in a room addition, converted space, or anywhere your ducted system leaves you less than comfortable.
